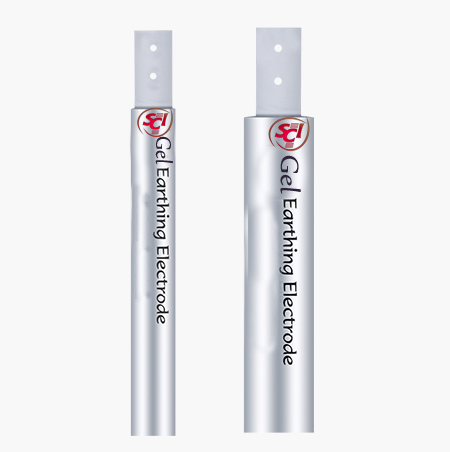

Sci Gel Earthing Electrode


Sci Gel Earthing Electrode :

Maintenance Free 'Sci ' Gel Earthing Electrode by utilizing metal alloys and natural chemical compositions, the Gel Earthing Electrode is able to provide a multifaceted proactive earthing protection strategy. The Earthing Electrode is manufactured from custom-made I.S.I tube to ensure maximum conductivity and prolonged service life. The Gel Earthing Electrode contains a conductor rich crystalline mixture that will protect the main earth electord in the soil. This will ensure a highly conductive state for the fault current to pass on to earth.

Earthing is very important area of electrical engineering maintenance. In most cases it fails due to corrosion of the pipe. Therefore Earthing Electrode can be used for effective earthing, which will ensure safety to human life, appliances, machines, equipment's etc., Earthing is absolutely essential and it is mandatory by various electrical department

A good and continuous effective earthing is of paramount importance. Sci Gel Earthing Electrode is most effective product for earthing.
Thus Sci Gel Earthing Electrode is totally maintenance free solution for many years and is suitable to any application required high performance earthing.


SCI Gel Earthing Aims at:

For any Industrial & their valuable and sensitive equipment , the voltage difference between individual electronic equipment as well as noise & surges can harm those equipment . for this SCI aims at to provide the proper and environment friendly grounding to stop electrostatic or dynamic discharge . thus SCI aims at
  • Maintains a stable reference potential for instrument accuracy.
  • It , also helps to give the life to our SCI Gel Earthing Electrode through its layer between electrode & direct.
  • Providing a easy discharge path for short circuits and lighting strikes (fault current/ surge protection).


Genext Expertise and R&D :

To serve more and more costumers with our projects and service with the SCI Gel Earthing Electrodes are the genext development in the Earthing Technology . SCI is the name of innovative ideas for the new method of all type of earthing is the only reliable & Proven name for the any earthing solution. SCI creating the idea with making GRID , MESH , & TRI-POD as well as Faradey /Octopus Earthing solutions. Our SCI Gel Earthing can be safely used for the grounding point for lighting protection system.

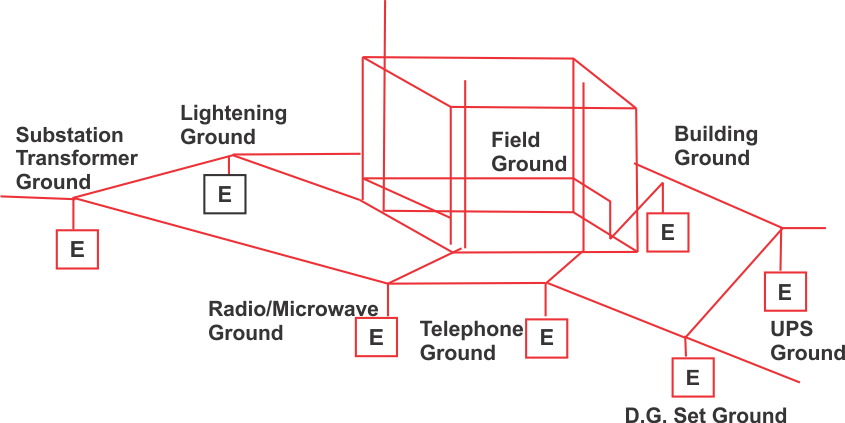

SCI earthing electrode stamp it ( as per IEEE guide lines ) that earthing pit must be interconnected to each other to form a solid grid , (for big surface area –thus result in fast dissipation of current into the earth)

The Benefits of SCI Gel Earthing :


  • Highly reliable for safety of human life.
  • High load carrying capacity and maximum fault current dissipation instantly .
  • Maintain low resistance values for a very long period having the bare minimum fluctuations.
  • Ensure proctection always and Maintenance free Solution.
  • Proper Galvanization & Highly Conductive.
  • Corrosion Free with Eco-Friendly Solutions.
  • SCI can be used in the form of a grid using 3 or more in nos. in an equilateral triangle configuration, duly inter-connected for highly sensitive projects and requirement of big surface area.
  • As per IS: 3043-1987 requirment .

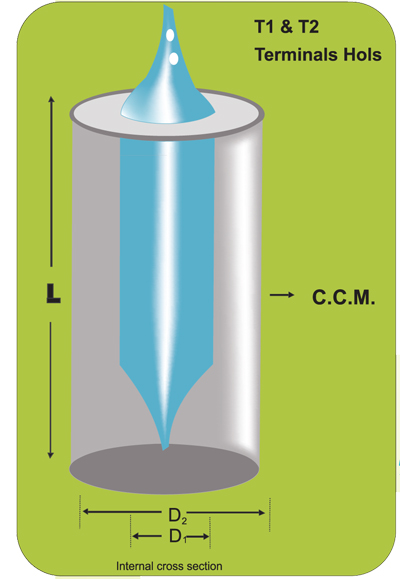

Primary Conducting & Surface Area.


• SCI gives maximum surface area (in sq.mm.)
• SCI gives maximum cross sectional conducting area (in sq.mm.)

Note :
  • SCI 19 Code No we recommended this for Lt Application
  • SCI 39 Code No-we recommended this for HT application
  • SCI 50 Code nowhere , only copper earthing is required
  • SCIcode no-recommended it for lighting earthing




User's :

Mobile & communication towers

Computer and data processing centers

Transmission & distribution system

Food processing unit/water treatment plants /etp/boilers etc.

Electrical sub-station & power D.G Earthing

Oil refineries & Petrol pumps

All transformer neutral/body/earthing

Heavy furnance / all type of industries

Both active / passive type lighting arrestor  earthing.

Commercial and residential complex i.e mall etc.

Body earthing of any equipment

Hospital , hotels and industries.
